Tillbehör
|
|
|
Driftsdata

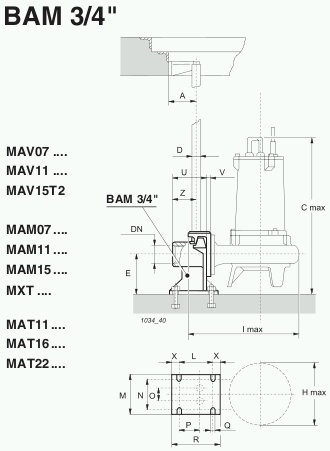

| Typ | DN | A | C max | D | E | H max | I max | L | M | N | O | P | Q | R | T | U | V | Z | X |
| [mm] | [mm] | ||||||||||||||||||
| BAM 3/4 " | G 2" | 85 | 580 | ø 3/4" | 130 | 240 | 320 | 110 | 125 | 110 | 38 | 75 | 15 | 150 | - | 102 | 25 | 85 | 20 |
| BAMF/E 2" | 80 UNI PN 10 | 102 | 585 | ø 2" | 160 | 290 | - | 156 | 135 | 110 | 185 | 125 | 18 | 230 | 280 | 320 | 420 | - | - |
